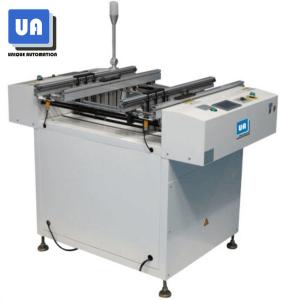

SMT Inspection PCB Reject conveyor 90KG 1000810900

Brand Name : UA

Model Number : SX-800

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 units per month

Delivery Time : 5-20 days

Packaging Details : vacuum packing for sea transportation

PCB width : 50*50-450*460 mm

Power supply : AC 220V 50/60 Hz

Control mode : PLC + touch panel screen

Air supply : 4-6kg/cm²

New weight : 150 kg

Machine dimension : L 1000 * W 810 * H 900±30 mm

Conveyor speed : 0-3000 mm/min

Convoy height : 900±30 mm

Contact Now

PCB Conveyor

SMT Inspection Conveyor Reject conveyor

Description

This unit is used in SMT production line, connecting with the detection equipment (SPI/AOI),

according to the NG/OK signal, OK board pass thru directly, NG board be lifted and stored upon

the conveyor, can stock max 8 pcs of PCB, if the PCBs full on the conveyor, there is an alarm signal.

NG boards can be lifted for visual inspection without interrupting the PCBs flow

Features

· User friendly touch panel screen + PLC control

· Dual lane or single lane design suit wide range of requirements

· Smooth and parallel width adjustment

· Different lengths available upon request

· Variable speed control

· SMEMA compatible

	Model	Machine Dimension (mm)	PCB Dimension (mm)	PCB Storage Capacity	Weight (kg)
Single lane	SX-800	1000810900	5050-450460 (or customized)	3-8 pcs	90
Dual lane	SX-800Ⅱ	10001250900	5050-450250	3-8 pcs	60
